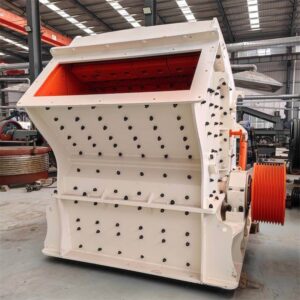

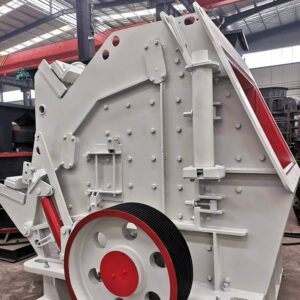

What is a Stationary Impact Crusher? Your Guide to Efficient Rock Crushing
A Stationary Impact Crusher is a heavy-duty, fixed-position machine designed for the high-volume reduction of large rocks and recycling materials into consistent, cubical-shaped aggregates. Unlike mobile crushers, it is permanently installed at a quarry, mining site, or recycling plant, forming the heart of the processing line. It utilizes the powerful principle of impact to crush materials, making it exceptionally efficient for producing high-quality end products for construction, asphalt, and concrete.
How Does a Stationary Impact Crusher Work? (Working Principle)
The working principle of a stationary impact crusher is centered on high-speed impact and centrifugal force. Here is a simplified step-by-step process:
Feed: Raw material (e.g., rock, concrete) is fed into the top of the crusher through a feed hopper.
Acceleration: The material enters the crushing chamber, where it is struck by rapidly rotating blow bars (hammers) fixed to a rotor. The rotor spins at high speed, throwing the material against the stationary impact plates (or aprons) lining the crusher walls.
Impact Crushing: The primary crushing occurs from the direct impact between the material and the blow bars. Secondary crushing happens as the material is propelled against the impact plates. This repeated impact shatters the rocks along their natural cleavage points.
Control & Recirculation: The gap between the rotor and the impact aprons can often be adjusted, allowing for precise control over the final product size. Some models feature a third crushing stage where smaller pieces are recirculated for further reduction.
Discharge: Once the material is crushed to the desired size, it passes through the adjustable aprons and exits the crusher at the bottom, ready for screening and further processing.
Key Features of a Stationary Impact Crusher
Stationary impact crushers are engineered for performance and longevity. Key features include:
Heavy-Duty Rotor: A robust, high-inertia rotor is the core of the crusher, ensuring efficient crushing even with tough materials and providing stable operation.
Wear-Resistant Blow Bars & Liners: Made from high-chrome or manganese steel, these components are built to withstand severe abrasion and impact, reducing downtime for replacements.
Hydraulic or Mechanical Adjustment System: Allows operators to easily adjust the gap between the impact aprons and the rotor, enabling precise control over the output product size without stopping the machine.
Large Feed Opening: Designed to accept large-sized feed material, increasing the crusher’s capacity and versatility.
Solid Steel Frame: A welded, reinforced frame provides exceptional durability and absorbs the high shock loads generated during the crushing process.
Advanced Safety Systems: Features like hydraulic opening of the crusher housing for safe and easy access to internal components for maintenance and blow bar changes.
Advantages of Using a Stationary Impact Crusher
Choosing a stationary impact crusher for your operation offers numerous benefits:
Superior Product Shape: Produces highly cubical, evenly graded end products that are ideal for asphalt and concrete applications, commanding a higher market price.
High Reduction Ratio: Capable of significantly reducing large feed material to a fine product in a single stage, simplifying the overall crushing circuit.
High Production Capacity: Designed for continuous, high-volume output, making them perfect for large-scale quarry and mining operations.
Versatility: Effective in processing a wide range of materials, including limestone, granite, concrete, and asphalt debris (recycling).
Cost-Effectiveness: Lower initial cost per ton compared to many other crusher types, thanks to high efficiency and capacity.
Durability and Reliability: Built for 24/7 operation with minimal maintenance requirements, ensuring maximum uptime and a strong return on investment.
We Provide High-Quality Stationary Impact Crushers for Your Business
Are you looking to optimize your aggregate production or recycling efficiency? We are your trusted partner for robust and reliable stationary impact crushers.
We understand that every project has unique requirements. That’s why we offer:
A Range of Models: From primary to secondary crushing configurations, we have a crusher to match your specific capacity and material needs.
Premium Quality & Durability: Our crushers are built with superior materials and engineering to ensure long service life and minimal operational costs.
Expert Support & Service: Our team of experts provides comprehensive support, from selecting the right model to installation, maintenance, and spare parts supply.
Customized Solutions: We can help you integrate the crusher seamlessly into your existing plant layout for maximum productivity.
