Primary Impact Crusher
Primary Impact Crusher
Table of Contents
What is a Primary Impact Crusher?

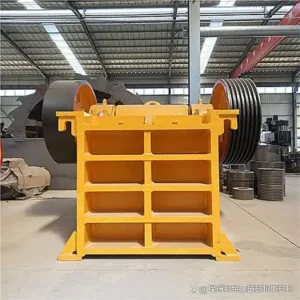

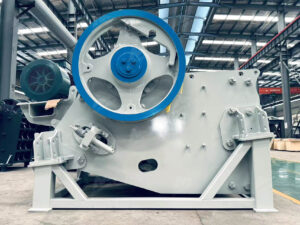

A Primary Jaw Crusher is a heavy-duty machine used for the first stage of crushing in a processing plant. Its core function is to reduce large, oversized material like boulders and run-of-mine ore into manageable sizes for further processing by secondary crushers. Characterized by its robust construction and simple yet effective “V” shaped chamber, it is engineered for durability, high capacity, and reliability under the most demanding conditions.
How Does a Primary Jaw Crusher Work?
The working principle of a primary jaw crusher is straightforward, based on compressive force.
The Chamber: The crusher features two vertical jaws – one is a stationary fixed jaw, and the other is a moving swing jaw.
The Motion: The swing jaw moves in an elliptical motion against the fixed jaw, driven by an eccentric shaft.
The Crushing Action: Raw material is fed into the top of the chamber. As the swing jaw moves towards the fixed jaw, it compresses the rock against it, breaking it into smaller pieces.
Gravity Discharge: The crushed material continues to move down the chamber towards the bottom. The size of the crushed product is determined by the Closed Side Setting (CSS) – the narrowest gap between the two jaws at the bottom. Smaller CSS produces a finer output.
Repetition: This cycle repeats continuously as new material is fed in, and the crushed product exits at the bottom.
What Materials Can a Primary Jaw Crusher Process?
Primary jaw crushers are incredibly versatile and can handle a wide range of hard and abrasive materials, including:
Granite
Basalt
Quartzite
Gneiss
Iron Ore
Copper Ore
Gold Ore
Concrete and Demolition Waste
Recycled Asphalt
Essentially, they are built to crush virtually any natural rock or recycled material.
Which Industries Use Primary Jaw Crushers?
Primary jaw crushers are fundamental equipment in several key industries:
Mining: For primary crushing of extracted ores (e.g., gold, copper, iron).
Aggregate Production: In quarries for producing crushed stone, sand, and gravel for construction.
Construction and Demolition (C&D) Recycling: To crush and reduce large concrete and rubble.
Railway Ballast Production: Crushing stone to specific sizes for railway track beds.
Primary Jaw Crusher Model and Specifications (Example)
Model: JC5460 Heavy-Duty Primary Jaw Crusher
| Parameter | Specification |
|---|---|
| Feed Opening | 1400mm x 1200mm (55″ x 48″) |
| Max. Feed Size | 1250mm (49″) |
| Power Rating | 300 kW (400 HP) |
| Weight (Approx.) | 110,000 kg (242,500 lbs) |
| Throughput Capacity | 1,000 – 1,500 MTPH (depending on material and CSS) |
| Closed Side Setting (CSS) Range | 150mm – 300mm (6″ – 12″) |
| Eccentric Shaft Speed | 220 rpm |
Key Features and Advantages of Our Primary Jaw Crushers
Robust Construction: Built with high-quality steel and heavy-duty components to withstand extreme operating conditions and abrasive materials.
Deep Crushing Chamber: The “V” shaped chamber ensures efficient nipping of the feed material and prevents bridging.
High Capacity and Efficiency: Optimized kinematics and a large feed opening allow for high throughput and reduction ratios.
Simple Maintenance: Designed with easily accessible wear parts and a straightforward lubrication system to minimize downtime.
Reliable Performance: Proven design with heavy-duty eccentric shafts and spherical roller bearings for long service life.
Adjustable Settings: Hydraulic adjustment of the CSS allows for quick and easy product size changes.
What Problems Can a Primary Jaw Crusher Solve for Customers?
Investing in a reliable primary jaw crusher directly addresses several critical operational challenges:
Problem: High Downtime from Equipment Failure.
Solution: Our crushers are built for maximum reliability, reducing unplanned stops and ensuring continuous production.
Problem: Low Throughput and Production Bottlenecks.
Solution: With high capacity and efficient crushing action, our jaw crushers optimize your plant’s overall output.
Problem: High Operating and Maintenance Costs.
Solution: Durable wear parts and a simple design lower the cost per ton for wear and maintenance.
Problem: Inability to Process Hard and Abrasive Materials.
Solution: The heavy-duty build and optimized kinematics are specifically designed to handle the toughest rocks.
Problem: Inconsistent Product Size.
Solution: Precise and easy CSS adjustment ensures a consistent and well-graded final product.
We Provide High-Quality Primary Jaw Crushers for You
we specialize in engineering and supplying robust and efficient primary jaw crushers tailored to your specific needs. We understand that the primary crushing stage is the foundation of your entire operation.
Our commitment to you includes:
Expert Consultation: Helping you select the perfect model and configuration.
Proven Technology: Crushers designed with decades of field experience.
Comprehensive Support: Global service, spare parts, and technical support.
Contact us today to discuss your primary crushing requirements and let us provide you with a solution that maximizes your productivity and profitability.
