What is a Primary Crusher? Your First Step in Size Reduction
In the world of aggregate production, mining, and quarrying, the primary crusher is the workhorse that starts it all. It is the first and most crucial stage in the material reduction process, responsible for taking raw, blasted, or mined material and breaking it down into manageable sizes for further processing.
Simply put, a primary crusher is the initial machine that handles large, run-of-mine (ROM) rocks and ores, reducing them to a size that can be handled by conveyor belts and secondary crushing equipment. Its robust design and powerful operation set the stage for the entire production line’s efficiency and output.
How Does a Primary Crusher Work? Understanding the Core Principle
The fundamental working principle of all primary crushers is compression. These machines use immense physical force to break large rocks by squeezing them between two surfaces.

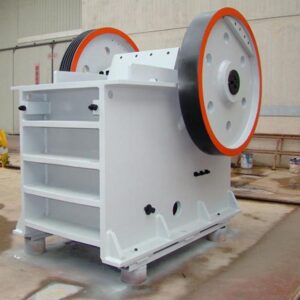

The most common type, the Jaw Crusher, exemplifies this principle:
Feed: Large rocks are dumped into the top of the crusher’s “V”-shaped chamber.
Crushing: One jaw is stationary (fixed jaw), while the other (swing jaw) moves back and forth. As the swing jaw moves towards the fixed jaw, it compresses the rock against the stationary surface.
Discharge: The crushed material continues to move down the chamber, getting smaller with each compression cycle, until it is small enough to escape through the gap at the bottom (the closed-side setting).
Other types, like Gyratory Crushers, use a similar compressive action but with a different mechanical motion.
Types of Primary Crushers: Which One is Right for Your Project?
Not all primary crushers are the same. The choice depends on the material’s hardness, abrasiveness, feed size, and required production capacity. The main types include:
Jaw Crushers: Ideal for hard, abrasive materials. Known for their simplicity, reliability, and low initial cost. Perfect for stationary and mobile applications.
Gyratory Crushers: Best for high-capacity applications (e.g., large mines and quarries). They have a higher throughput than jaw crushers but are more complex and have a higher initial cost.
Impact Crushers: Suitable for less abrasive, softer materials like limestone. They use impact force rather than pure compression, making them excellent for producing a more cubical product.
Primary Crushing Stations (Mobile): These are portable plants that integrate a primary crusher, feeder, and conveyor on a single chassis, offering unparalleled flexibility for on-site crushing.
Key Features and Advantages of a Primary Crusher
Investing in a high-quality primary crusher brings numerous benefits to your operation:
High Reduction Ratio: Capable of significantly reducing large rocks (up to several feet in diameter) in a single pass.
Robust Construction: Built with heavy-duty materials to withstand the extreme forces and abrasive nature of raw feed.
High Efficiency and Capacity: Designed to handle large volumes of material, setting a high production rate for the entire plant.
Reliability and Durability: Minimal downtime ensures continuous operation, maximizing productivity and profitability.
Versatility: Different models and configurations are available to handle a wide range of materials and operational requirements.
Industries That Rely on Primary Crushers
Primary crushers are foundational equipment in many key industries:
Mining: For breaking down copper, gold, iron ore, and other metallic ores for further processing.
Aggregate Production: In quarries for crushing granite, limestone, and sandstone to produce construction aggregates.
Construction and Demolition (C&D): For reducing large concrete and asphalt rubble for recycling.
Sand and Gravel Pits: To process naturally occurring sand and gravel deposits.
We Provide the Perfect Primary Crusher Solution for Your Needs
Choosing the right primary crusher is critical to the success of your project. With so many factors to consider, you need a partner with expertise and a comprehensive product range.
We are your trusted supplier for all your primary crushing needs. Our solutions include:
A wide selection of Jaw Crushers and Gyratory Crushers from leading manufacturers.
Custom-configured Mobile Primary Crushing Plants for ultimate flexibility.
Expert advice to help you select the ideal crusher for your specific material, capacity, and operational goals.
Comprehensive support, including installation, maintenance, and genuine spare parts.
Ready to optimize your primary crushing stage? Contact us today for a consultation and let our experts help you find the most efficient and profitable primary crusher for your application.
