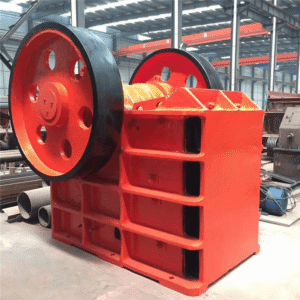

PEX Jaw Crusher machine
What is a PEX Jaw Crusher?
A PEX Jaw Crusher is a type of single-toggle jaw crusher designed for secondary crushing. It is widely used in mining, metallurgy, construction, and chemical industries to crush medium-hard materials efficiently. Compared to primary jaw crushers, the PEX series is smaller, lighter, and suitable for finer crushing with higher efficiency.
Key Features of PEX Jaw Crusher
- Compact structure – smaller footprint and easy installation
- Adjustable discharge opening – enables control of output size
- High crushing ratio – efficiently reduces material size in one pass
- Durable components – wear-resistant jaw plates and bearings
- Easy maintenance – simple design allows fast inspection and part replacement
- Stable operation – vibration and noise are minimized
Working Principle of PEX Jaw Crusher
The PEX Jaw Crusher works on a single-toggle mechanism:
- Motor drives the eccentric shaft to move the movable jaw.
- Movable jaw moves towards the fixed jaw to crush material.
- Material is compressed and broken into smaller pieces.
- When the movable jaw moves away, crushed material is discharged from the bottom.
The continuous movement of the jaw ensures high-efficiency crushing and uniform particle size.
Advantages of PEX Jaw Crusher
- High efficiency and crushing ratio
- Adjustable output size for flexibility
- Low energy consumption and high throughput
- Simple operation and low maintenance cost
- Stable performance under continuous operation
- Can handle abrasive and medium-hard materials
Features of PEX Jaw Crusher
- Strong frame design – ensures stability and longevity
- Wear-resistant jaw plates – reduce maintenance frequency
- Hydraulic adjustment system (optional) – easy to change discharge settings
- Compact size and lightweight – suitable for limited-space installations
Comparison with Other Jaw Crushers
Compared to other jaw crushers, PEX crushers have:
- Smaller size and lighter weight, easier installation
- Higher crushing ratio and more uniform particle size
- Adjustable discharge settings for specific material requirements
- Better suitability for secondary or fine crushing
Suitable Materials for PEX Jaw Crusher
PEX Jaw Crushers are ideal for crushing:
- Limestone, granite, basalt, quartz, river stone
- Iron ore, copper ore, gold ore, and other medium-hard ores
- Construction waste, concrete, and recycled materials
Machines to Pair with PEX Jaw Crusher
- Vibrating feeders – ensure smooth and continuous feeding
- Cone crushers – for secondary or tertiary crushing
- Impact crushers – for shaping and fine crushing
- Screening machines – for separating materials by size
Request for Quotation (RFQ) for PEX Jaw Crusher
When submitting an RFQ, customers typically provide:
- Required production capacity (tons per hour)
- Material type and hardness
- Desired output size
- Power supply and installation requirements
- Optional features (hydraulic adjustment, wear-resistant plates, etc.)
Related Articles
PE Jaw Crusher FAQ
1. What is the service life of jaw plates?
It depends on the material hardness and working hours. High manganese steel plates can last several months under normal conditions.
2. How to adjust the discharge size?
The discharge opening can be adjusted by changing the toggle plate or using the adjustment device.
3. Can PE jaw crusher be used in a mobile crushing plant?
Yes, it can be mounted on a mobile chassis for flexible operation.
4. What is the delivery time?
Normally 15–30 days depending on the model and customization requirements.
If you are looking for a reliable and cost-effective primary crushing solution, the PE Jaw Crusher remains a proven choice in the global mining and aggregate industry.
