How to set up a gravel plant
Table of Contents

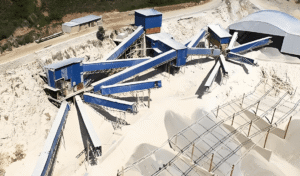

Comprehensive Guide to Setting Up a Gravel Plant
This guide will walk you through the key considerations for establishing an efficient and profitable gravel processing operation.
Site Selection and Required Space
The size of the site is crucial and depends heavily on the production scale, raw material reserves, and logistical needs.
Small to Medium-Scale Plant (50-200 TPH*):
Minimum Area: 3-5 acres (approx. 12,000 – 20,000 m²).
Rationale: This space accommodates the processing equipment, a small stockpile for raw materials and finished products, office space, and basic truck maneuvering.
Large-Scale Plant (200-500+ TPH):
Minimum Area: 10-20 acres (approx. 40,000 – 80,000 m²) or more.
Rationale: A larger footprint is needed for high-capacity equipment, extensive raw material storage, multiple product stockpiles (for different sizes of gravel, sand, etc.), maintenance workshops, and large-scale loading and unloading zones.
*TPH = Tons Per Hour
Key Site Considerations:
Raw Material Reserve: The site should be located close to the quarry or raw material source to minimize transportation costs.
Topography: A gentle slope is ideal for leveraging gravity in the material flow, reducing the need for conveyors and energy consumption.
Regulatory Compliance: Ensure the location is zoned for industrial use and consider buffer zones for noise, dust, and environmental impact.
Accessibility: Easy access to main roads for transportation of finished products is essential.
2. Essential Equipment and Their Characteristics
A modern gravel plant is a system of interconnected machines. Here is the core equipment list:
| Equipment | Function & Characteristics | Key Advantages |
|---|---|---|
| 1. Feeder | • Function: Regulates the flow of raw material (quarry-run stone) into the crusher. • Types: Vibrating Grizzly Feeder (VGF), Apron Feeder. • Characteristics: VGF has grizzly bars to separate out fine material before crushing, increasing efficiency. | • Prevents crusher overload and damage. • Ensures a consistent and steady feed rate. • VGF removes fines, improving overall capacity. |
| 2. Jaw Crusher (Primary) | • Function: Performs the first stage of size reduction. Breaks down large rocks (e.g., 500mm) into smaller pieces (e.g., 150mm). • Characteristics: Uses a fixed and a movable jaw to create a “chewing” action. Robust and high-capacity. | • High reliability and low maintenance. • Handles very large and abrasive rock. • Simple design, easy to operate and maintain. |
| 3. Cone Crusher (Secondary) | • Function: Further crushes material from the jaw crusher into smaller, more uniform sizes (e.g., 20-40mm). • Characteristics: Uses a rotating mantle within a concave bowl. Excellent for producing high-quality, well-shaped aggregate. | • Produces precisely shaped, cubicle end products. • Highly efficient and capable of high reduction ratios. • Often equipped with hydraulic adjustment and clearing systems. |
| 4. Impact Crusher (Secondary/Tertiary) | • Function: Uses impact force to crush material, ideal for softer rock and producing fines (sand). Can be used as a primary for non-abrasive applications. • Characteristics: High-speed rotors with blow bars that throw rock against aprons. | • Excellent product shape for concrete and asphalt chips. • High reduction ratio in a single machine. • Can be used for recycling concrete and asphalt. |
| 5. Vibrating Screen | • Function: Separates crushed material into different size fractions (e.g., 0-5mm, 5-10mm, 10-20mm). • Characteristics: Features multiple screen decks with different-sized meshes. Material is sorted by size as it moves across the screen. | • Critical for producing multiple, spec-grade products. • Increases plant profitability by maximizing product value. • High-efficiency screening improves overall system throughput. |
| 6. Conveyor System | • Function: The “circulatory system” of the plant, transporting material between all stages. • Characteristics: Consists of belts, rollers, pulleys, and drives. Can be stationary or mobile. | • Efficient and continuous material handling. • Reduces manual labor and trucking within the plant. • Customizable layouts to fit the site. |
| 7. Sand Wash Plant | • Function: Cleans the fine aggregate (sand) by removing clay, silt, and dust. • Types: Sand Screws (Fine Material Washers) or Bucket Wheels. • Characteristics: Uses water and mechanical action to scrub and separate unwanted fines. | • Produces high-quality, clean sand that meets construction standards. • Recovers valuable fines that would otherwise be waste. • Reduces dust in the final product. |
Automation and Intelligent Control
Modern gravel plants are moving towards high levels of automation to maximize efficiency, safety, and consistency.
PLC (Programmable Logic Controller) Control System:
Feature: A central computer system that monitors and controls the entire plant.
Advantage: Allows for one-button start/stop sequences, monitors motor loads, and provides real-time operational data. Reduces the need for manual intervention.
Crusher Automation:
Feature: Systems like ASRi (Automatic Setting Regulation) for cone crushers.
Advantage: Automatically adjusts the crusher’s closed-side setting (CSS) in real-time to maintain optimal performance and protect the machine from overload, ensuring consistent product size.
Camera and Level Monitoring:
Feature: Cameras in hoppers and on conveyors, along with radar level sensors on bins and stockpiles.
Advantage: Allows operators to visually monitor material flow and bin levels from the control room, preventing overflows or run-outs.
Remote Monitoring:
Feature: Using IoT (Internet of Things) sensors and satellite communication.
Advantage: Enables off-site experts to monitor plant performance, diagnose issues, and even perform remote troubleshooting, minimizing downtime.
Our Customized Solutions for Your Success
We understand that no two gravel deposits or market demands are the same. That’s why we don’t just sell equipment; we provide tailored, turn-key solutions.
Our Customization Services Include:
Plant Layout and Flow Sheet Design:
We analyze your raw material properties and production goals to design the most efficient crushing and screening process flow.
Equipment Selection and Configuration:
We help you select the optimal combination of crushers (Jaw, Cone, or Impact), screens, and other equipment tailored to your specific rock type and desired product mix.
Modular and Stationary Plant Designs:
Modular Plants: Ideal for remote sites or projects requiring relocation. They offer flexibility and faster setup.
Stationary Plants: Designed for long-term, high-volume production with a focus on durability and minimal operating costs.
Product Mix Optimization:
We design the plant to maximize the output of your most profitable products (e.g., concrete aggregate, road base, manufactured sand) based on local market demand.
Environmental and Dust Control Integration:
We integrate mist systems, baghouse filters, and water spray systems to ensure your plant meets all environmental regulations for dust and noise.
Lifecycle Support and Training:
Our service doesn’t end at installation. We provide comprehensive operator training, spare parts support, and maintenance planning to ensure your plant’s long-term productivity and profitability.
