Crusher Working Principle
Table of Contents
Crusher Working Principle: Types of Crushers and Their Applications in Mining
In mining operations, crushers play a critical role in reducing the size of raw materials for further processing. Understanding the working principle of crushers and the types available can help optimize mining efficiency. This article explores the most common crushers used in mining, their working principles, applications, and advantages. We also offer a wide range of high-performance mining crushers to meet diverse client needs.

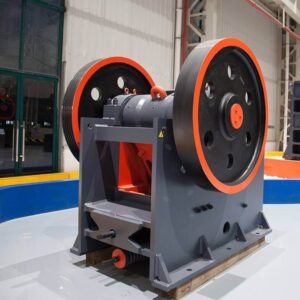

1. Jaw Crusher
Working Principle:
A jaw crusher operates by compressing materials between two rigid surfaces: a fixed jaw and a movable jaw. The movable jaw exerts force on the materials by moving back and forth, crushing them into smaller pieces. This is known as the “squeeze and release” mechanism.
Materials Crushed:
Hard and abrasive materials like granite, basalt, and iron ore.
Medium-hard rocks such as limestone and concrete.
Role in Mining:
Jaw crushers are typically used for primary crushing, breaking down large-sized rocks into manageable chunks for further processing.
Features & Advantages:
Simple structure and easy maintenance.
High crushing efficiency for hard materials.
Reliable performance with low operational costs.

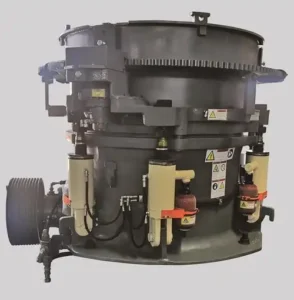

Cone Crusher
Working Principle:
A cone crusher operates by squeezing materials between a rotating mantle and a stationary concave. The mantle gyrates, creating a compression force that breaks down materials into smaller pieces. The crushing chamber is designed to ensure progressive crushing from large to fine particles.
Materials Crushed:
Medium to hard materials like granite, basalt, and quartz.
Abrasive ores such as copper ore and gold ore.
Role in Mining:
Cone crushers are commonly used for secondary or tertiary crushing, producing finely crushed materials suitable for grinding or further processing.
Features & Advantages:
High productivity and uniform particle size.
Low wear and long service life.
Suitable for high-capacity crushing operations.

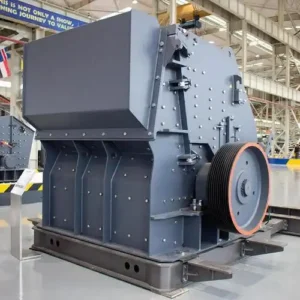

Impact Crusher
Working Principle:
An impact crusher uses impact force to crush materials. Rotors with blow bars spin at high speeds, striking the materials and throwing them against impact plates. This repeated impact breaks the materials into smaller pieces.
Materials Crushed:
Soft to medium-hard materials like limestone, coal, and recycled concrete.
Non-abrasive materials with low silica content.
Role in Mining:
Impact crushers are ideal for producing cubical-shaped aggregates and are often used in secondary crushing applications.
Features & Advantages:
Excellent particle shape and size control.
High reduction ratio and energy efficiency.
Versatile applications in aggregate production and recycling.
Hammer Crusher
Working Principle:
A hammer crusher utilizes high-speed rotating hammers to strike and break materials. The materials are crushed by impact and shear forces as they enter the crushing chamber.
Materials Crushed:
Soft to medium-hard materials like limestone, gypsum, and coal.
Brittle materials with low moisture content.
Role in Mining:
Hammer crushers are widely used in cement plants and coal mines for primary or secondary crushing.
Features & Advantages:
Simple operation and high crushing ratio.
Suitable for wet and sticky materials.
Low cost and easy maintenance.
Roll Crusher
Working Principle:
A roll crusher compresses materials between two rotating rollers. The rollers rotate toward each other, pulling the materials into the crushing zone and applying compressive force to break them down.
Materials Crushed:
Soft to medium-hard materials like coal, salt, and phosphate.
Friable materials with low abrasiveness.
Role in Mining:
Roll crushers are used for fine crushing and are particularly effective in coal and mineral processing.
Features & Advantages:
Compact design and low dust production.
Adjustable output size.
Ideal for processing sticky materials.
Why Choose Our Mining Crushers?
We provide a comprehensive range of crushers tailored to meet the specific needs of mining operations. Our products are designed for:
High Efficiency: Maximize productivity with advanced crushing technology.
Durability: Built to withstand harsh mining environments.
Customization: Crushers can be customized for specific materials and output requirements.
Global Support: Professional technical support and after-sales service.
Whether you need a jaw crusher for primary crushing or a cone crusher for fine crushing, we have the right solution for you.
