What is a Cone Crusher Mantle? The Heart of Your Crushing Process
If you’re in the mining, aggregate, or quarrying industry, you know that efficiency and durability are paramount. At the core of every cone crusher’s operation is a critical component: the Cone Crusher Mantle. But what exactly is it, and why is it so important?

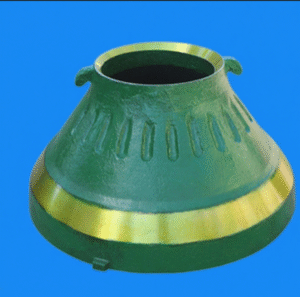

The mantle is the moving, wear-resistant part that gyrates within the concave (or bowl liner) in a cone crusher. Together, they form the crushing chamber where the magic happens. As rocks and ores enter the chamber, the mantle compresses them against the concave, breaking them into smaller, uniform-sized pieces. Essentially, the mantle is the primary actor in the crushing process, directly impacting your plant’s productivity and product quality.
The Role of the Cone Crusher Mantle in Cone Crusher Operation
The mantle doesn’t work alone. It’s paired with the concave, and the gap between these two parts determines the final product size. Here’s the simple breakdown of its function:
Feed: Raw material is fed into the top of the crusher.
Compression: The mantle gyrates, eccentrically pressing the rocks against the stationary concave.
Crushing: The immense pressure causes the rocks to fracture and break.
Discharge: The crushed material falls through the narrowing gap and exits at the bottom.
Over time, this continuous compression and abrasion cause the mantle to wear down. A worn mantle loses its optimal profile, leading to decreased efficiency and poor product shape.
Why Do You Need to Replace Your Cone Crusher Mantle?
Replacing the mantle is not an option; it’s a necessity for maintaining operational excellence. Here are the key reasons for replacement:
Wear and Tear: This is the primary reason. Constant contact with abrasive materials gradually wears down the mantle’s surface.
Loss of Efficiency: A worn mantle cannot apply crushing force effectively, leading to lower throughput and increased power consumption.
Poor Product Quality: As the mantle wears, the crushing chamber geometry changes, resulting in inconsistent and out-of-spec product size and shape.
Risk of Damage: If a mantle is worn too thin, it can fail catastrophically, potentially causing severe damage to other crusher components, leading to extensive downtime and repair costs.
Regular inspection and timely replacement are crucial for minimizing unplanned downtime and maximizing your return on investment.

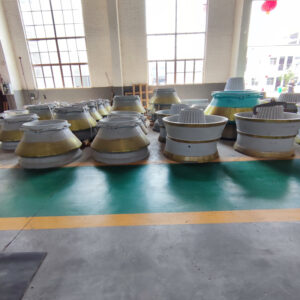

Our Cone Crusher Mantle: Unmatched Advantages and Features
When it comes to a component as vital as the mantle, settling for anything less than superior quality is not an option. Our Cone Crusher Mantles are engineered for performance, durability, and value.
Key Features and Advantages:
Premium Materials: We use high-grade manganese steel (Mn14, Mn18, Mn22) and advanced alloys, treated through precise heat treatment processes. This ensures high hardness for wear resistance while maintaining the necessary toughness to withstand impact shocks.
Optimal Design: Our mantles are designed with precision-engineered profiles that promote better crushing dynamics, higher throughput, and a superior cubical product shape.
Longer Service Life: The combination of superior materials and expert manufacturing results in a mantle that lasts significantly longer, reducing your cost-per-ton and the frequency of change-outs.
Consistent Performance: You can rely on our mantles to deliver stable and efficient crushing from the first hour to the last, ensuring your production targets are consistently met.
Compatibility: We offer mantles that are fully compatible with leading cone crusher brands and models.
Customization: We Build to Your Blueprints
We understand that every crushing operation is unique. Sometimes, an off-the-shelf part isn’t enough. That’s why we offer comprehensive custom manufacturing services.
If you have your own drawings or specifications, we can produce a Cone Crusher Mantle tailored exactly to your needs. Our advanced foundry and machining capabilities allow us to replicate any design with precision, ensuring a perfect fit and optimal performance for your specific application.
Whether you need a standard replacement or a fully customized solution, we are here to provide the highest quality Cone Crusher Mantles that keep your operation running smoothly and profitably.
Contact us today to discuss your requirements and discover how our mantles can improve your crushing efficiency.
